Attic Ventilation Problems

In the summer we get calls about hot attics. In the winter we get calls about wet attics. Both of these problems are either caused or made worse by inadequate attic ventilation. Attic ventilation problems can be caused by a number of things. A lack of intake ventilation is one of the biggest items. Soffit vents blocked by insulation is a common problem. It is almost impossible to tell from the outside if the vents are blocked by insulation. We see poorly cut soffit vents often, sometimes you can see the problem from the ground.

Insulation Baffles

Insulation baffles usually block the soffit vents!
Install them with care

8" x 16" soffit vents provide 65 square inches of net free area for intake ventilation. That much area needs to be clear all the way up to the open attic space. Hot air cannot get out unless there is cool air coming in to replace it. The cool air cannot get in if it is blocked by baffles or insulation. Please don’t block the soffit vents with baffles!


Examples of good insulation baffles -

Image of a plywood insulation baffle.
These baffles give an air channel 3.5 inches by 22 inches which equals 77 square inches for each rafter bay.

Image of Allied Insulation baffles.
This baffle gives us 154 square inches! This is what we really want. These can be made from cardboard or plywood or any stiff material

attic ventilation airflow diagram
Attic Ventilation airflow diagram

Examples of inadequate insulation baffles -

Image of a crappy insulation baffle.
These baffles gives an air channel about 8 to 12 square inches. Not nearly enough for the 65 square inches we need.

An image of an ineffective insulation baffle.
This baffle gives an air channel of about 28 square inches. These are only useful if there are baffles installed along the whole length of the eave AND the soffits are connected.

Image of an insulation bafle full of insulation in Anthem Ranch CO.
This photo was taken in a new house at Anthem Ranch in Broomfield Colorado. The builder spent thousands of dollars to install the insulation baffles on this home and it was all wasted by the sloppy work of the insulation installers who blew insulation into the baffles. Unfortunately there is no way to tell from the outside that there is a problem with the installation.

Poorly cut soffit vents

Just because you can see soffit vents does not mean there is cool air going into the attic. Sometimes they are blocked by insulation or framing. Sometimes the opening is not all cut out.

Image of a soffit vent with a seres of small holes drilled into the soffit.
This soffit vent is nearly worthless for ventilation.

Image of the soffit after the vent is removed, showing how small the holes are.
Not only are the holes very small but there is no way to tell if there is insulation blocking the vent.

Image of 4 round holes drilled behind the soffit vent, not providing much airflow into the attic.
These holes will give about 14 square inches of ventilation instead of the 65 si there should be for an 8" soffit vent.

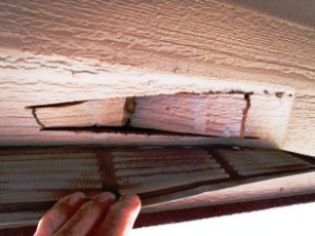

Image of a soffit vent where the piece was not removed after it was cut.
This vent was poorly cut and they did not even take out the piece.

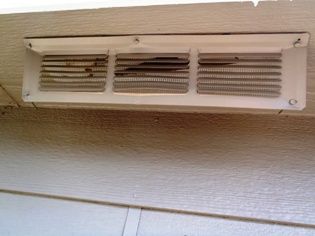

Image looking through a soffit vent to see a very small hole.
Looking through the louvers you can see there is a very small hole cut for this soffit vent.

Image of another soffit vent with a very small hole cut.
Another small hole.

Image where a soffit vent was removed to reveal that there was no hole cut behind it.
The hole was not even cut out for this vent. The soffit vent was just nailed in place and painted.

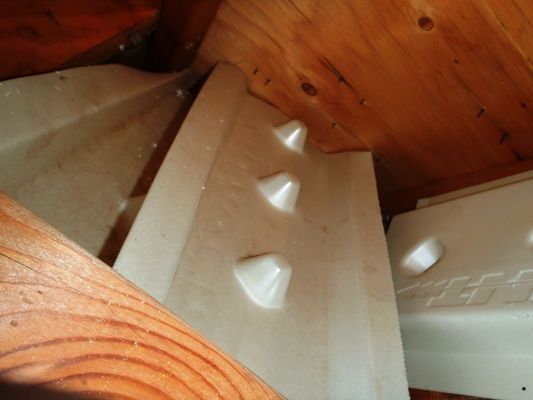

Image of 3 insualtion baffles crowding into the same space.
This is baffle city!

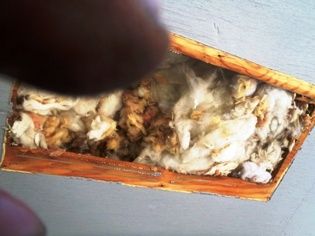

A soffit vent stuffed with insulation so it does not work.
No air is going through this vent, stuffed with fiberglass.


Vinyl and Aluminum Soffits

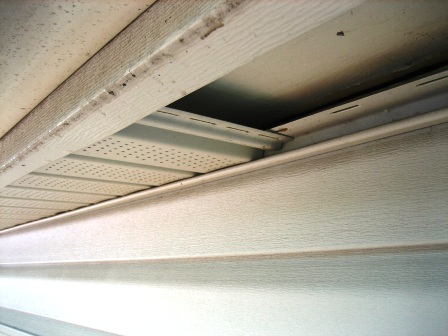

Image of vinyl soffits installed over wood soffits.

When new vinyl or aluminum soffits are installed on a home that already has siding, they always cover up the soffit vents. Sometimes they install ventilated soffit sections but they are only effective if the installers cut the existing soffit material away and move the insulation out of the way so the air can go up into the attic. These ventilated soffit sections are only rated at 5 square inches of net free area per square foot so the only way they will work is if the entire home has ventilated soffits AND all of the soffits have airflow up into the attic.

As you can see, these ventilated sections will not let any air up into the attic. The soffit boards are still there.


Garage Ventilation

Garage ventilation can be problematic. While we want to ventilate the garages in the summer to prolong the life of the shingles and to make it more comfortable, we want to keep it warm in the winter. Also, garages have different designs. Some garages are unfinished and others are completely finished. Often the drywall in the garage is a firewall and care must be taken with penetrations.

Unfinished garages

Roof vents are needed to let out the hot air. Either convection or powered vents can be used. To seal them in the winter, closeable dampers can be installed. If it is not hard to get to the vents, they can be sealed with plastic sheeting or fiberglass batt insulation. Unless you have a very tight sealing door, soffit vents are probably not needed. If you have a tight sealing door you may be able to leave the door slightly open to provide intake air. If this is not an option, we sometimes install automatic vents that close when it is cold.

Finished garages

Both rooftop exhaust and soffit intake vents are needed if the garage ceiling is finished with drywall. This will keep the attic temperature lower. If the garage faces west or south it may get really hot and need active ventilation in the garage itself. Exhaust fans can be installed in the garage wall or ceiling to exhaust the hot air from the garage itself. The Quiet Cool GA ES-1500 garage exhaust fan can be installed in the ceiling of the garage and has a fire resistant damper.

Crawlspace Ventilation

Note: Radon Mitigation is a separate field outside of the scope of our work.

In the old days, crawlspaces were ventilated. The idea was that air moving through the crawlspace would keep it dry. Sometimes fans on humidistats were installed to really move the air. Problems arose in the winter because pipes would freeze, not to mention cold floors and high heat bills. In the summer, when the warm moist air contacts the cool crawlspace, the moisture condenses out of the air like on a glass of iced tea. Instead of drying out the crawlspace it gets more moisture.

Now, building professionals have decided that the crawlspace is considered to be INSIDE the house. It is called a conditioned crawlspace. We want the crawlspace to be the same temperature and humidity as the rest of the home. If moisture is a problem, keep the water from coming in. Make sure the downspouts have extensions. If there is a high water table, install a sump pump. Insulate the crawlspace walls, not the underside of the floor. Put a heavy liner on the crawlspace floor and wrap it up the walls.

We used to do crawlspace ventilation but we spent most of our time telling people they do not need crawlspace ventilation.

Except in rare cases, Vent Masters Inc. no longer does crawlspace ventilation.
